Key Configurations
Integrated Machine Bed
- Industrial-grade structure with 650mm compact spacing ensures maximum stability during high-speed operations
- Triple-reinforced welding and vibration damping technology achieve 96% vibration absorption at 2G acceleration
- High-frequency stress-relieved construction maintains ±0.02mm/m flatness over 15,000+ operating hours
- Monolithic design eliminates alignment drift, ensuring positional accuracy across temperature fluctuations of 15-45℃
Tube Rotation & Cutting System

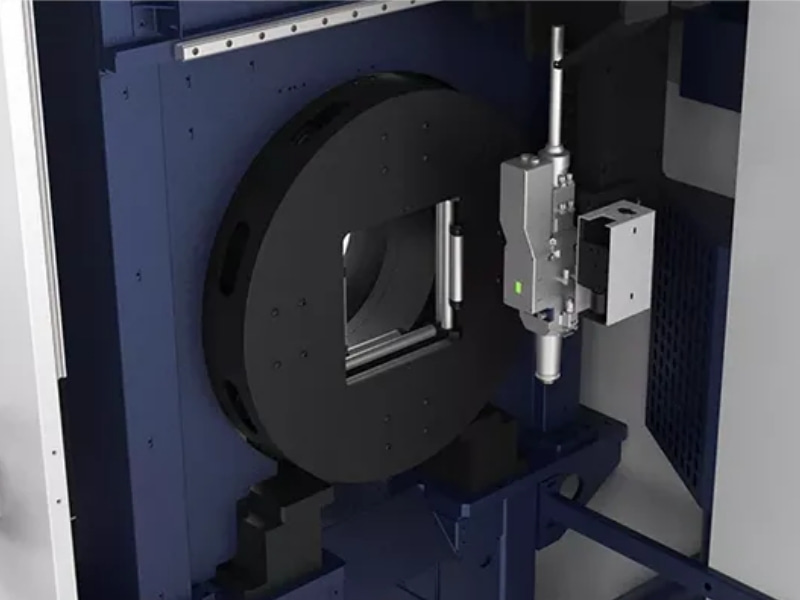

- Precision-ground chucks provide 0.01° angular positioning repeatability for complex contours
- Direct-drive rotational axis achieves 120 RPM with ±0.1mm axial runout control
- Auto-centering technology accommodates oval tubes within 2% deformation tolerance
- Collision-adaptive TRA system instantly halts motion upon impact and self-recovers alignment
Intelligent Plate Processing
- Exchange table system supports 6000×2000mm plates with <3sec load/unload transition
- Capacitive height sensing maintains 0.15-0.3mm cutting distance across warped materials
- Active exhaust filtration removes 99.8% of particulates from cutting smoke
- Monolithic granite bed with 5µm vibration absorption capability under 2G acceleration
Unified CNC Control System
- Single-interface operation manages both plate nesting and tube programming workflows
- Material recognition AI auto-detects carbon steel/stainless/aluminum and applies optimal parameters
- 4kW/6kW/15kW laser options with dynamic power modulation (±1% energy stability)
- Real-time collision simulation prevents tool interference during complex multi-axis moves
Wide Pipe Clamping Range
- Round tube clamping range: φ10-φ250mm
- Square tube range: 10×10mm to 220×220mm
- Supports cutting of various profiles including I-beams, channels, angle irons, elliptical tubes, and deformed pipes
- Universal chuck design accommodates both standard and non-standard cross-sections
Pneumatic Roller Support System
- Active workpiece stabilization eliminates deformation during long-tube cutting operations
- Self-leveling rollers adapt to 10-250mm diameters with ±0.05mm vertical positioning accuracy
- Programmable pressure zones apply optimal clamping force for thin-walled and irregular profiles
- Retractable design clears obstruction during plate processing for seamless mode transitions
Wide Processing Range, Can Cut a Variety of Tubes
- Round tube processing: ø15mm-ø220mm diameter
- Square tube processing: 15×15mm to 150×150mm
- Capable of cutting structural profiles including H-beams, I-beams, angle steels, and channels
- Handles specialized tube shapes (drop-shaped, concave, etc.) with 3D laser cutting head
Double Pneumatic Chucks, Ultra-short Tailing
- Front/rear automatic centering with dual-driven rotation maintains perfect synchronization
- Full-stroke front chuck design enables maximum material utilization
- Tailing reduced to 50mm through innovative front chuck avoidance cutting technology
- Precision clamping system ensures zero slippage during high-speed 120 RPM operations
Automatic Loading Equipment (Optional)
- Intelligent transmission mechanism with tube sequencing technology ensures orderly material flow
- 6-clamp roller system eliminates reset cycles between loading operations
- Continuous feeding capability reduces idle time by 40% and increases cutting efficiency
- Auto-alignment technology positions materials within ±0.5mm tolerance
